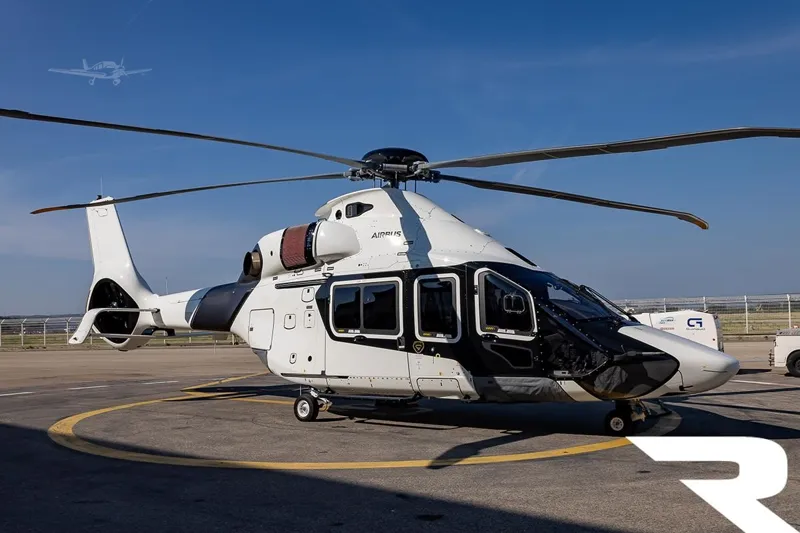

2024 Airbus Helicopters H160

General: Crashworthy Airframe Comprising Front Fuselage (cockpit nose avionics bay) Intermediate Fuselage Including: Cabin Luggage Compartment with 2 Lockable Doors (LH RH sides) Cowlings and Fairings Rear Fuselage Tail Boom with Canted Fenestron Horizontal Stabilizer Built-in Footsteps Handles to Access Upper Deck for Maintenance Tricycle-type Electrically Controlled Retractable Landing Gear Jacking, Hoisting Mooring Points Instrument Panel: 4 Reconfigurable Smart 6x6-Inch Displays Providing Following Functions: Flight Navigation Display Page Including: Primary Flight Display (PFD) Navigation Display (ND) Parameter Tuning Automatic Flight Control System (AFCS) Fuel Data First Limit Indicator (FLI) Rotor Speed and Free Turbine Rotation Speed Crew Selectable Area (clock, etc.) Alarms and Advisories Vehicle Monitoring Display (VMD) Pages Including: Main Page: Engine Vehicle Status Fuel Page Electrical System Page Hydraulic / Landing Gear Page Transmission Page Enhanced Usage Monitoring Page External Video Sources (when optional equipment is fitted) 1 Common Control Panel: Landing Gear Maneuver and Position Indicators Windshield Wiper and Washer Controls Parking Brake and Nose Wheel Control Panel Capabilities for Optional Controls Stand-by Instruments Stand-by Compass Integrated Electronic Stand-by Instrument (IESI) 1 Storage Box Standard Avionics Package Based on HELIONIX Suite: Cockpit Video Camera with Embedded Recorder Tail Fin Video camera CVFDR – Solid State Cockpit and Flight Recorder Flight Data Continuous Recorder (FDCR) for HFDM (Helicopter Flight Data Monitoring) (HELIONIX Suite) 2 Duplex Aircraft Management Computer (AMC) (HELIONIX Suite) Usage Monitoring System (HELIONIX Suite) Light HMS – Health Monitoring System Emergency Locator Transmitter (ELT) with Embedded GPS Dual Flight Management System Installation with LPV Approach Function, Search Patterns and Auto Hover Mode Digital Audio Communication System (DCAS) Basic Pack for Pilot and Copilot, Two Headset Holders in Cockpit Radio Altimeter AVH1600 Passenger Address NAT 251 VHF/AM Collins VHF 4000 #1 VHF/AM Collins VHF 4000 #2 VOR/ILS/MKR Collins NAV4500 #1 VOR/ILS/MKR Collins NAV4500 #2 VHF/FM NAT NPX 138 – Fixed Parts Collins DME 4000 Multifunction Transponder ADSB-Out/TCAS II Coupled with AFCS Weather/Search Radar Telephonic RDR1600 Digital MAP (HELIONIX Suite) Helicopter Terrain Awareness Warning System (HELIONIX Suite) Synthetic Vision System (HELIONIX Suite) Interseat Console: 1 Automatic Pilot Control Panel (APCP) 1 Environment Control System (ECS) – Separate Cockpit / Cabin Ventilation Heating and Air Conditioning, Cockpit Demisting 1 Lighting Control Panel 1 ELT Remote Control Panel 1 Radar Control Panel 2 Advanced Flight Management and Control Display Units 2 DACS Audio Control Panels Overhead Panel: Electrical Function and Emergency Cut-off Controls Fire Detection / Extinguishing Controls Engine Controls Engine Auxiliary Controls (training and chip burning) Hydraulics Control Pre-flight Test and Lamp Test Control Rotor Brake Control Grip Capabilities for Optional Controls Miscellaneous: 3 Attitude and Heading Reference Systems (AHRS) 2 Three-axis Magnetic Sensor Units (MSU) Connected to AHRS 3 Heated Pitot Heads 2 Air Data Units (ADU) 2 Temperature Probe Units (TPU) Wireless Data Device with SD Card Transmission System: 1 Main Gearbox with Low Oil Level Switch, Oil Pressure and Temperature Sensors, Access to Ports for Endoscope and Oil Sampling, 4 Chip Detectors and Oil Cooling System 2 Free Wheels Integrated to the Main Gearbox 1 Dual Lubrication System with 1 Main Pump and 1 Emergency Pump 2 Engine / Main Gearbox Coupling Devices (shaft and torque tube) 1 Rotor Brake System 1 Tail Rotor Drive Shaft 1 Splash Lubricated Tail Gearbox with 1 Temperature Sensor and 1 Chip Detector Hydraulic Generation: 2 Independent Hydraulic Systems Feeding Main Rotor and Tail Rotor Actuators Including Level Probes and Sight Gauges in Oil Tanks 1 Electro-Hydraulic Pump (on LH side) for Ground Assistance Self-sealing Hydraulic Ports on Each Side for Ground Hydraulic Power Bench Connection Electrical Installation: 1 DC Power Generation System: 2 Starters / Generators (300 A, 28 v DC) 2 Electrical Master Boxes 2 Nickel-cadmium Batteries 15 Ah Including Thermal Switch and Temperature Probe 1 DC Emergency Electrical Generator 1 External Receptacle with 28 VDC Power Connector and 1 Maintenance External ICS Jack 1 Breaker Panel in Nose 2 Breaker Panels in Cockpit 1 Emergency Breaker Panel in Cockpit Power Distribution System: 2 Primary Bus Bars 2 Essential Bus Bars 4 High Load Contactors (150 A) 2 USB (5V/2A) Power Supply Plug on Instrument Panel Cabin Power Supplies at Rear Console Lighting System: 1 Red/White Tail Fin Anti-collision / Strobe Light 3 Position Lights (red, green, white) 2 Exterior Emergency Lights Instrument Panel, Interseat Console and Overhead Panel Adjustable Lightings 2 Flashlights 1 Dome Lig
