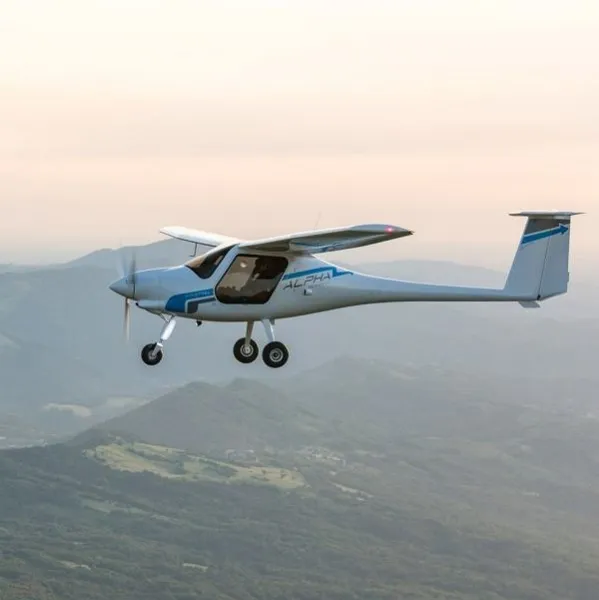

2023 PIPISTREL Alpha Electro SOLD

Engine Pipistrel PEM 60MVLC max power – 60 kW 1 min, Cruise 50 kW @ 2100 – 2400 rpm Propeller ground adjustable three-blade 1.64 m diameter propeller Dimensions wing span – 34′ 6″ (10.5 m) length – 21′ 4″ (6.5 m) height – 6′ 9″ (2.05 m) wing area – 102.4 sqft (9.51 m2) rudder area – 11.8 sqft (1.1 m2) tail area – 11.6 sqft (1.08 m2) aspect ratio – 11,8 positive flaps – 0°, 15°, 25° centre of gravity – 20% – 38% MAC Weights basic empty weight (with batteries) – 368 kg max take off weight (MTOW) – 472,5 – 550 kg (LSA) Payload – 182 kg Performance DATA PUBLISHED FOR MTOW 1,212 lbs (550 kg) All speeds in Knots stall with flaps – 38 KCAS stall without flaps – 45 KCAS cruising speed (75% power) – 85 KIAS maximum horizontal speed at sea level – 100 + -KIAS VNE – 135 KIAS max speed with flaps down – 70 KIAS manoeuvring speed – 86 KIAS best climb speed – 76 KIAS max climb rate – 1,220 fpm best glide ratio speed – 64 KIAS best glide – 15:1 take off run (grass) – 169.2 m (555 feet) take off over 50′ obstacle (grass) – 265.2 m (870 feet) service ceiling – 3900 m (12,800 feet) 45°-45° roll time – 2.6 sec endurance – up to 60 minutes (plus reserve) cruise range distance – 75 NM max load factor permitted @ (1.875) – +4g -2g design safety factors & tested – minimum 1.875
